Product Overview

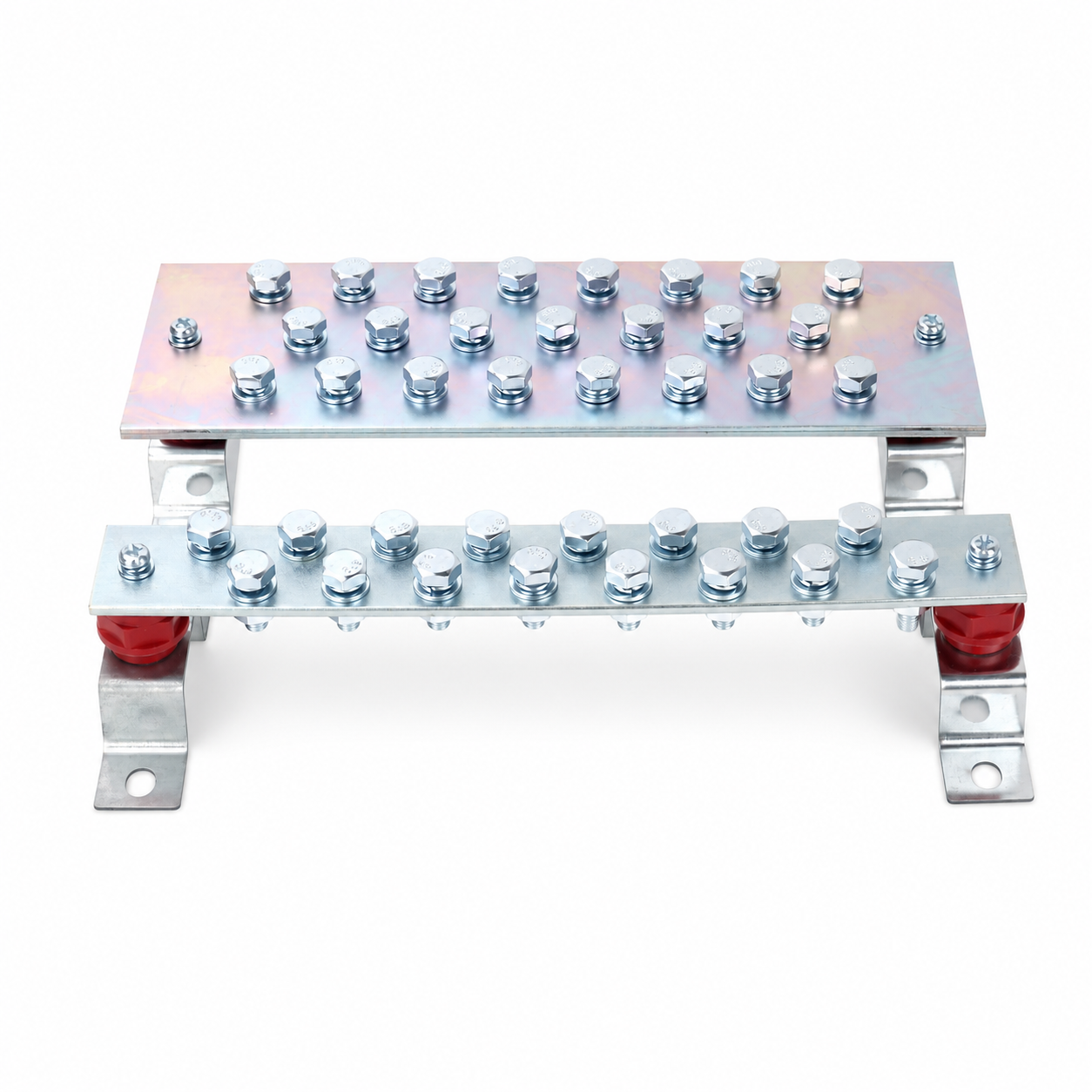

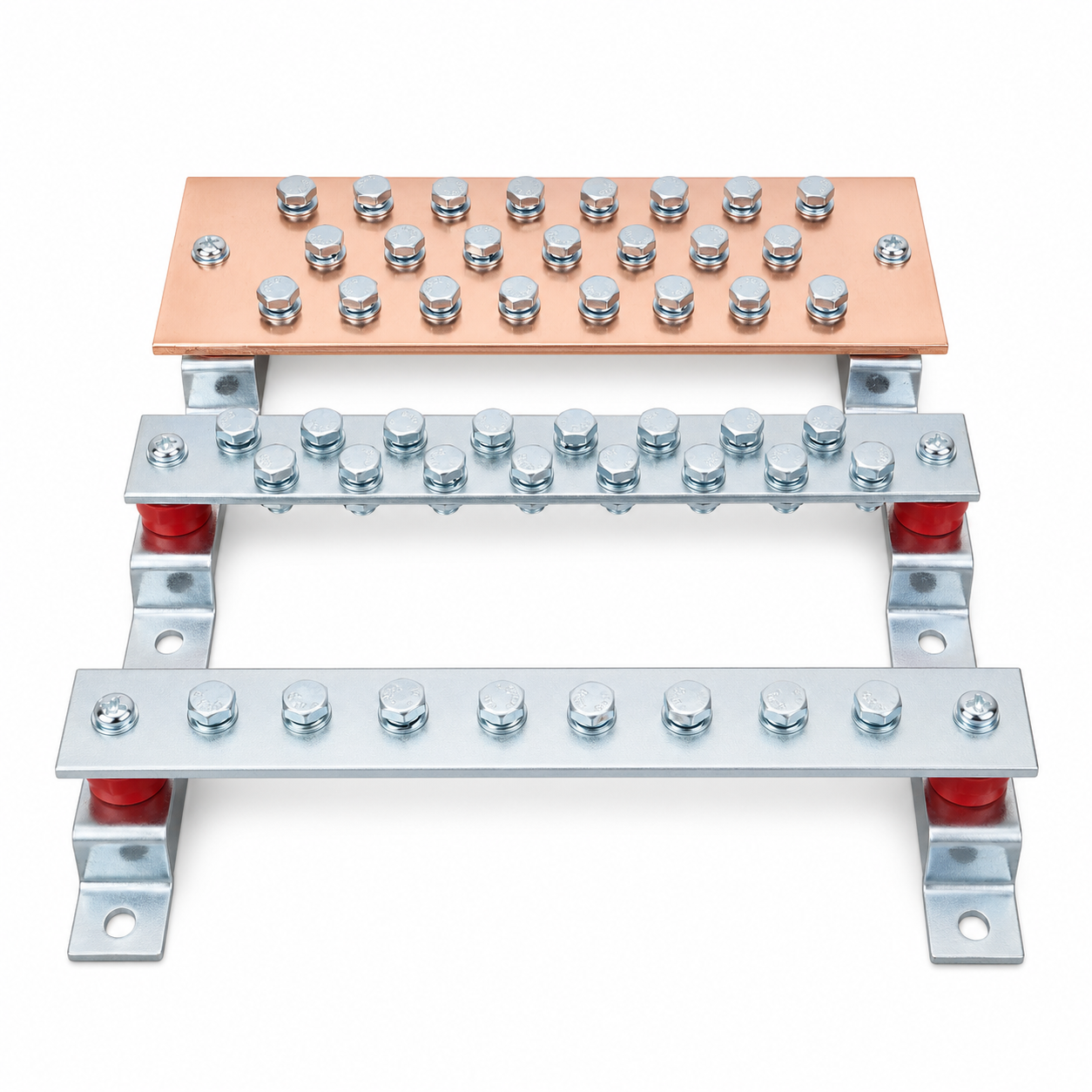

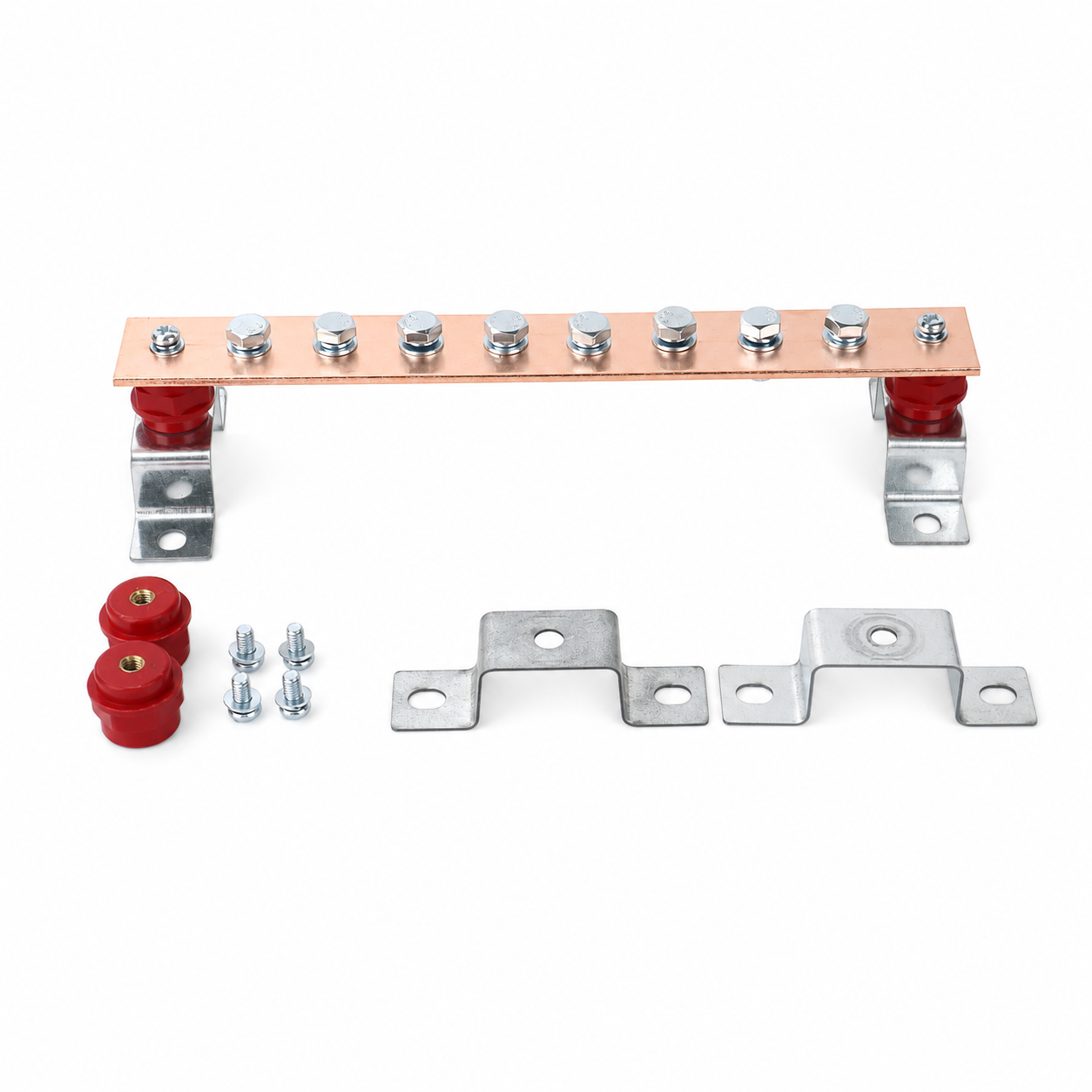

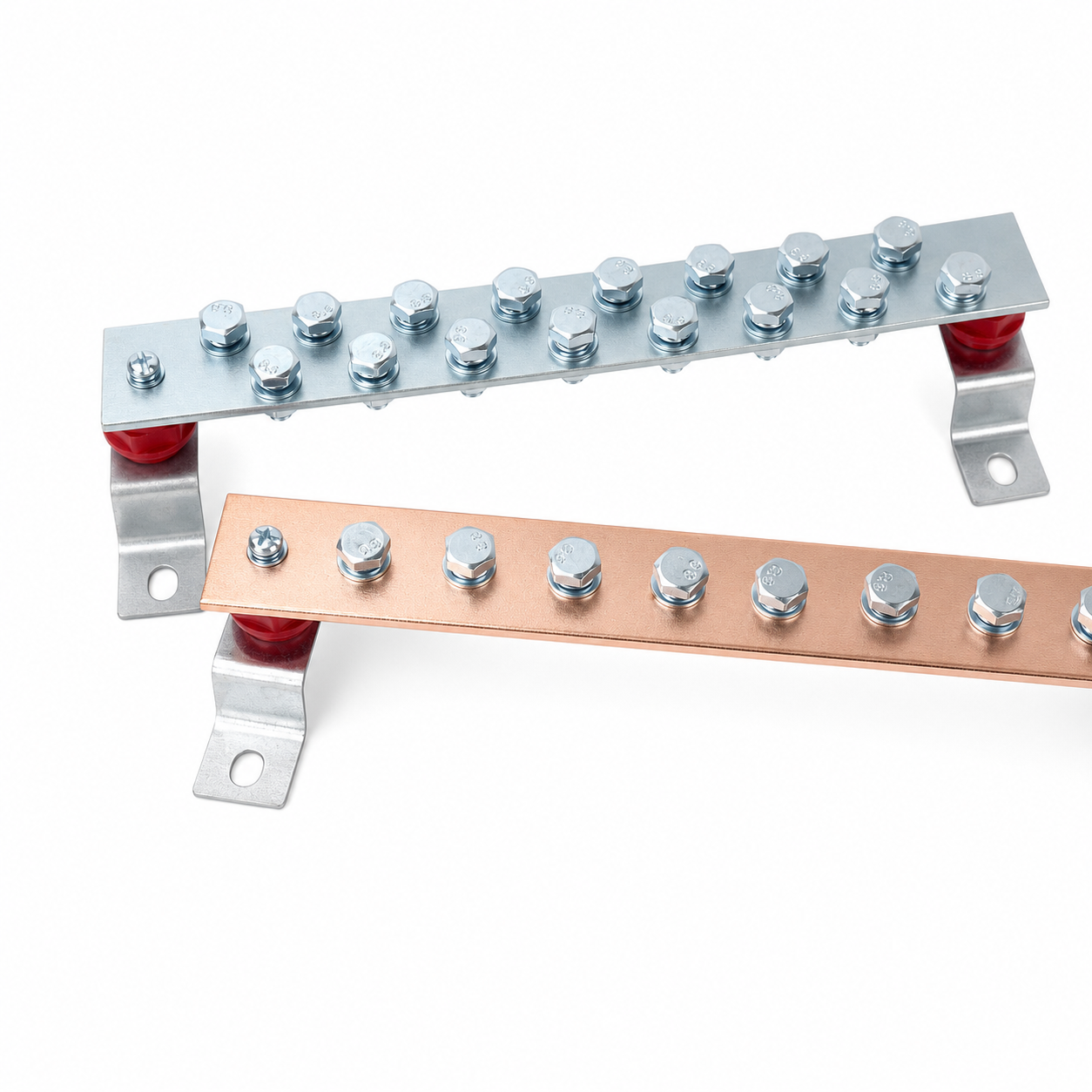

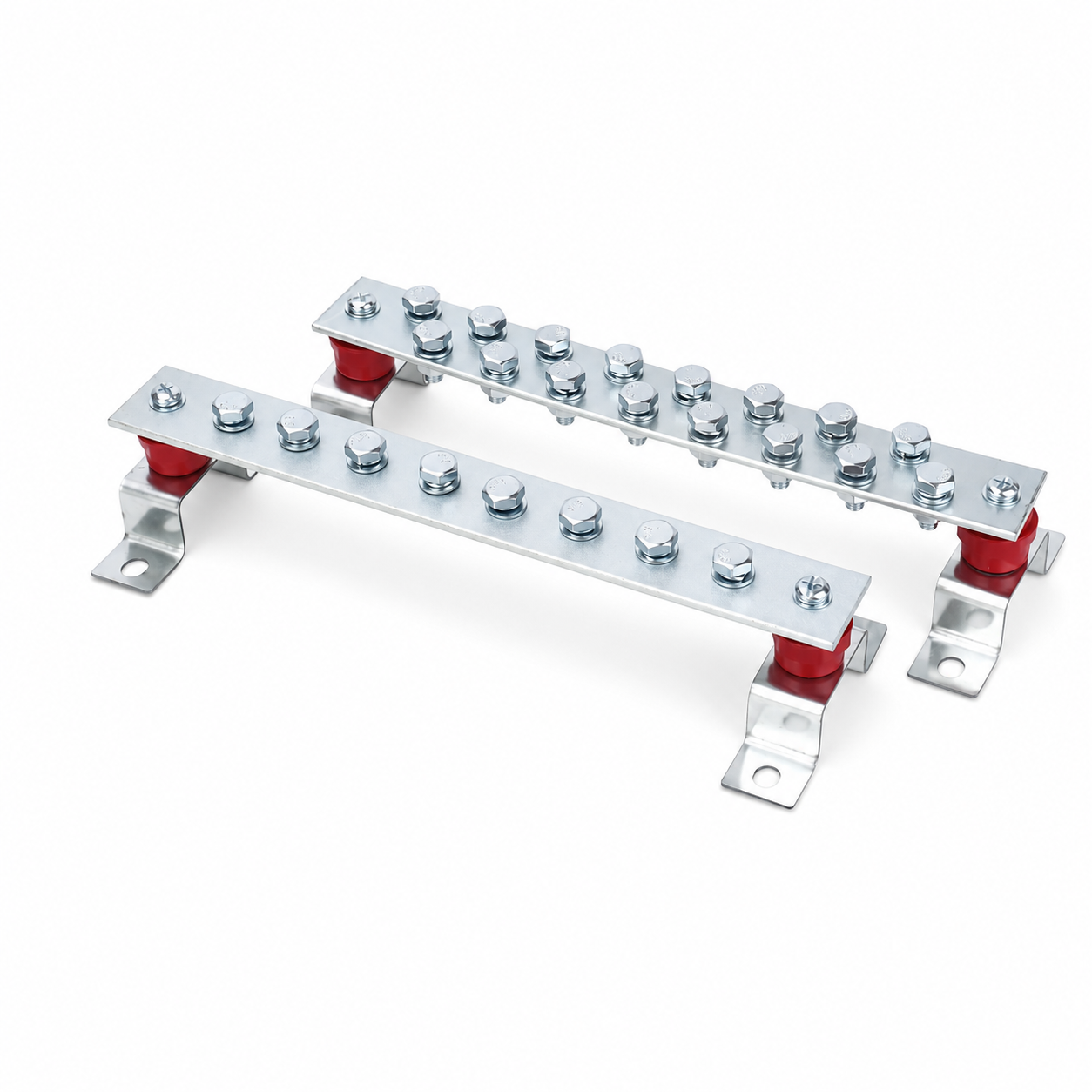

The subway connection panels are available in two base material styles: galvanized iron panels and copper-plated subway connection panels. They are manufactured using high-quality low-carbon steel, which undergoes integrated rolling processing. The surface is fully covered with hot-dip galvanizing/thick copper plating. Their electrical conductivity far surpasses that of ordinary black iron panels. They can be easily installed handheld, with no restrictions on the grounding transmission distance, making them perfectly suitable for all construction scenarios such as traditional arc grounding, photovoltaic grounding, distribution cabinet connections, and building lightning protection.
The thermal impact zone during grounding operations is extremely small, and there will be no deformation, discoloration, or scorch marks on the steel surface; the welding contact area is large, and there is sufficient conductive medium, with no raised imperfections from molten material. This product is a high-voltage conductive accessory profile, featuring low electrical conduction losses. The electrical current is transmitted through a parallel flow structure to the grounding point, completing the conduction process. It supports various construction methods, such as vertical bonding, parallel stacking, and bending with drilling. All dimensions, thickness, hole locations, and bending angles can be customized based on provided drawings.
Product Features
1. Excellent conductivity efficiency: The copper-plated version has conductive properties similar to those of purple copper, while the galvanized version boasts superior corrosion resistance. The conductivity speed is more than 3 times faster than that of regular black iron bars.
2. Finished product with smooth construction: The thin and uniform coating on the flat panel surface, minimal cutting tolerances, high dimensional accuracy, smooth and glossy appearance with no burrs, and high joint bonding.
3. Minimal construction deformation: Metal thermal expansion is minimal, the welded area and heat-affected zone are narrow and deep, and the grounding connection is secure and does not loosen.
4. Rapid heat dissipation and cooling: High-density metal substrate, combined with a galvanized/electroplated copper composite structure. The joints are stable and do not easily generate heat, resulting in a robust overall structure.
5. Long-lasting, durable, and low-loss: The coating protects against moisture, acids, and bases, making it resistant to corrosion when buried underground outdoors. It does not require frequent replacement of consumables over time, extending its lifespan by 8 to 10 years.
6. Easy to use and simple to operate: It can be cut, bent, punched, and installed without requiring specialized training. It contains no toxic volatile substances and is eco-friendly, meeting environmental standards for electrical construction.
7. Full-size customization service: width, thickness, length, hole diameter, hole spacing, and bending shapes can all be adjusted individually based on the customer’s construction drawings.
Supporting general service information
1. Packaging and Transportation
The product is packaged in an extra-thick standard export carton, with shock-absorbing foam insulation inside to protect the copper sheets from scratches and oxidation during long-distance sea transportation. Stable cross-border logistics are provided, and the entire logistics journey can be tracked.
2. Samples and wholesale services
Small items can be provided with free samples, and customers only bear the shipping costs. We support small batch trial orders and bulk wholesale orders. Direct factory sales with no intermediaries offer significant advantages for Southeast Asian distributors.
3. After-sales support services.
In cases where dimensional deviations, material inconsistencies, or other quality issues arise due to errors in our factory’s processing, we offer free re-production and replacement. Our expert team provides comprehensive guidance on customizing drawings and is available to resolve any equipment assembly and compatibility challenges promptly.
4. Qualification Certification and Payment Methods
Accompanied by original factory material inspection reports and export environmental certification. Wire transfers, letters of credit, and local cross-border transfers are all possible. A deposit can be paid upfront to arrange production, and the remaining balance will be settled before shipment.
5. An overview of the company’s capabilities.
Wenzhou Dongyao Trading Co., Ltd. has been deeply involved in the sales and custom processing of copper, iron, and aluminum metal raw materials for an extended period. It possesses extensive experience in foreign trade supply and can provide overseas buyers with stable and long-term supply guarantees.
